Manufactured from EPS, enjoy a floor insulation solution that will last the lifetime of your building with no loss of performance
Achieve BREEAM, LEED and HPI! KORE Floor is a sustainable and fully recyclable product- and backed by an Environmental Product Declaration

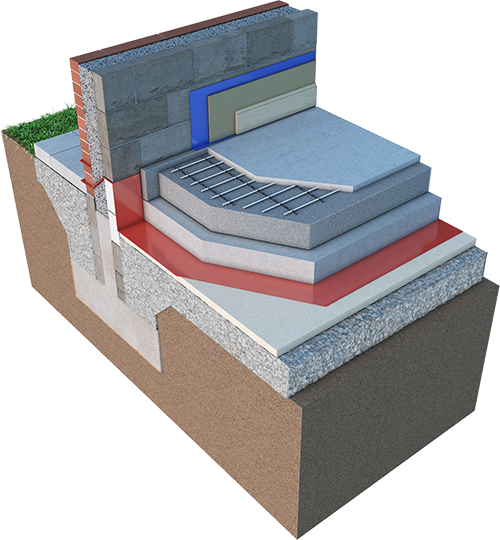

Meet Part L 2019 with or without underfloor heating! Perfect for your low energy building or Passive House
U-values:
Thickness | U-Value | |
---|---|---|
EPS70 Silver | 160mm | 0.15W/m2K |
EPS70 Silver | 300mm | 0.09W/m2K |
-
Designed For Our Climate
Forget about mould, water and moisture.
-
Easy to Install On-Site
No specialised equipment needed. KORE Floor is non-toxic and chemically inert and installs quickly and easily in most conditions.
-
High-Performing
Available in two grades of material, White & graphite-enhanced Silver for even lower U-values.
-
Cost-Optimal
Save over 20% when compared to competing floor insulation materials without sacrificing performance
TECHNICAL INFORMATION
- Please see U-values & Physical Properties Table Below
- Download KORE Floor Design Guide >>
DECLARATION OF PERFORMANCE
KORE Floor Fully certified
- NSAI IRISH AGRÉMENT BOARD CERTIFICATE NO 04/0097
- Manufactured to IS EN 13163:2012+A1:2016
- KORE is certified to ISO 9001:2015 Quality Management Systems
With & Without Screed
Material | Thermal Conductivity | Thickness | U-Value | ||
PIR Insulation | 0.022W/mK | 110mm | 0.15W/m2K | ||
EPS70 Silver | 0.031W/mK | 160mm | 0.15W/m2K | ||
PIR Insulation | 0.022W/mK | 150mm | 0.12W/m2K | ||
EPS70 Silver | 0.031W/mK | 200mm | 0.12W/m2K | ||
Calculation assumes a P/A of 0.4 |
Solid Concrete Ground Floors – Insulation Before the Floor Slab – (150mm Concrete Slab, 2% Steel) Sample U-Values
Insulation Thickness | Perimeter/Area (m2) | |||||
|
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
U-Value (W/m2K) |
||||||
100mm |
0.17 |
0.19 |
0.21 |
X |
X |
X |
125mm |
0.15 |
0.17 |
0.18 |
0.19 |
0.19 |
0.20 |
150mm |
0.13 |
0.15 |
0.16 |
0.16 |
0.17 |
0.17 |
160mm |
0.13 |
0.14 |
0.15 |
0.15 |
0.16 |
0.16 |
175mm |
0.12 |
0.13 |
0.14 |
0.14 |
0.15 |
0.15 |
200mm |
0.11 |
0.12 |
0.12 |
0.13 |
0.13 |
0.13 |
210mm |
0.11 |
0.11 |
0.12 |
0.12 |
0.13 |
0.13 |
220mm |
0.10 |
0.11 |
0.12 |
0.12 |
0.12 |
0.12 |
230mm |
0.10 |
0.11 |
0.11 |
0.11 |
0.12 |
0.12 |
240mm |
0.10 |
0.10 |
0.11 |
0.11 |
0.11 |
0.11 |
250mm |
0.09 |
0.10 |
0.10 |
0.11 |
0.11 |
0.11 |
260mm |
0.09 |
0.10 |
0.10 |
0.10 |
0.10 |
0.11 |
270mm |
0.09 |
0.09 |
0.10 |
0.10 |
0.10 |
0.10 |
280mm |
0.09 |
0.09 |
0.09 |
0.10 |
0.10 |
0.10 |
290mm |
0.08 |
0.09 |
0.09 |
0.09 |
0.09 |
0.10 |
300mm |
0.08 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
Solid Concrete Ground Floors – Insulation Below the Floor Slab – Sample U-Values
Insulation Thickness | Perimeter/Area (m2) | |||||
|
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
U-Value (W/m2K) |
||||||
100mm |
0.17 |
0.19 |
0.21 |
X |
X |
X |
125mm |
0.15 |
0.17 |
0.18 |
0.19 |
0.19 |
0.20 |
150mm |
0.13 |
0.15 |
0.16 |
0.16 |
0.17 |
0.17 |
175mm |
0.13 |
0.14 |
0.15 |
0.15 |
0.16 |
0.16 |
200mm |
0.12 |
0.13 |
0.14 |
0.14 |
0.15 |
0.15 |
210mm |
0.11 |
0.12 |
0.12 |
0.13 |
0.13 |
0.13 |
220mm |
0.11 |
0.11 |
0.12 |
0.12 |
0.13 |
0.13 |
230mm |
0.10 |
0.11 |
0.12 |
0.12 |
0.12 |
0.12 |
240mm |
0.10 |
0.11 |
0.11 |
0.11 |
0.12 |
0.12 |
250mm |
0.10 |
0.10 |
0.11 |
0.11 |
0.11 |
0.11 |
260mm |
0.09 |
0.10 |
0.10 |
0.11 |
0.11 |
0.11 |
270mm |
0.09 |
0.10 |
0.10 |
0.10 |
0.10 |
0.11 |
280mm |
0.09 |
0.09 |
0.10 |
0.10 |
0.10 |
0.10 |
290mm |
0.09 |
0.09 |
0.09 |
0.10 |
0.10 |
0.10 |
300mm |
0.08 |
0.09 |
0.09 |
0.09 |
0.09 |
0.10 |
Thermal Resistance of KORE Floor Insulation
KORE Floor EPS70 White | KORE Floor EPS70 Silver |
KORE Floor EPS100 White |
KORE Floor EPS100 |
KORE Floor EPS200 White |
|
Thickness Insulation (mm) |
Thermal Resistance |
||||
50mm |
1.351 |
1.613 |
1.389 |
1.613 |
1.515 |
75mm |
2.027 |
2.419 |
2.083 |
2.419 |
2.273 |
100mm |
2.703 |
3.226 |
2.778 |
3.226 |
3.030 |
125mm |
3.378 |
4.032 |
3.472 |
4.032 |
3.778 |
150mm |
4.054 |
4.839 |
4.167 |
4.839 |
4.545 |
175mm |
4.730 |
5.645 |
4.861 |
5.645 |
5.303 |
200mm |
5.405 |
6.452 |
5.556 |
6.452 |
6.061 |
250mm |
6.757 |
8.065 |
6.944 |
8.065 |
7.576 |
300mm |
8.108 |
9.677 |
8.333 |
9.677 |
9.091 |
